Launch X431 SmartLink C V2.0 – Remote Diagnostic Device ( Vehicle Data Link Connector )
| 起源の場所 | 中国 |
|---|---|
| ブランド名 | LAUNCH X431 |
| モデル番号 | LAUNCH X431 SmartLink C 2.0 用 |
| 最小注文数量 | 1 |
| 価格 | $599 |
| パッケージの詳細 | 44cm*38cm*14cm /4.6KG |
| 受渡し時間 | 1営業日 |
| 支払条件 | T/T、ウェスタンユニオン、MoneyGram |
| 供給の能力 | 1000 |
試供品およびクーポンのための私に連絡しなさい。
whatsapp:0086 18588475571
WeChat: 0086 18588475571
Skype: sales10@aixton.com
心配があれば、私達は24時間のオンライン・ヘルプを提供する。
x商品の詳細
| モデル名 | LAUNCH X431 SmartLink C 2.0 用 | 原産地 | 中国本土 |
|---|---|---|---|
| 品質 | 優良 | 特別機能 | ブルーツ,WiFi |
| 電圧 | HD SmartLink C 2.0 | オーマイン・NO | ロンチ X431 スマートリンク C2.0 熱量トラックモジュール |
| 特徴 1 | VCI (車両通信インターフェイス) として作業する | 特徴2 | ローカルJ2534 PassThruデバイスとして動作 |
| 特徴3 | リモートJ2534 PassThruデバイスとして動作 | サポート 1 | システム欠陥の完全な診断 |
| サポート 2 | CAN/DOIP/CAN FDIJ2534 に準拠 | サポート3 | コード読み,コードクリア |
| サポート 4 | データストリームの読み取り | ||
| ハイライト | Vehicle Data Link Connector Launch X431,Launch X431 SmartLink C V2.0 Diagnostic Device |
||
製品の説明
Product Description
- Compatible with LAUNCH tools, OE tools or any other diagnostic tools
- Support more advanced protocols like J2534, DoIP, CAN FD, CAN 2.0, RP1210, D-PDU
- Publish request and accept offer from Launch Super Remote Diagnosis Reservation Platform
- SmartLink can be used not only remote diagnosis but also local diagnosis by working with LAUNCH intelligent diagnostics

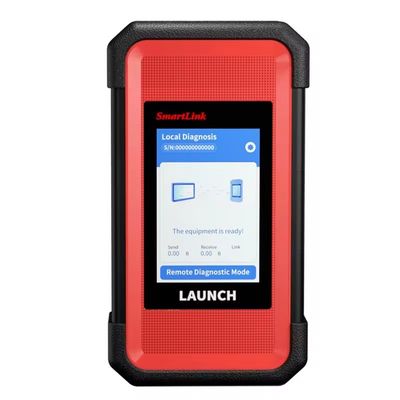

Launch SmartLink C V2.0 Remote Diagnosis Device
The SmartLink Remote Diagnostics System is a newly developed powerful service system dedicated to remote vehicle diagnosis and service. In this system, SmartLink B (Business), as a SmartLink Service Provider, can accept remote repair orders issued by SmartLink C users via SmartLink Service Platform.
Launch X431 SmartLink C Features
1. Compatible with LAUNCH tools, OE tools or any other diagnostic tools
2. Support more advanced protocols like J2534, DoIP, CAN FD, CAN 2.0, RP1210, D-PDU
3. Publish request and accept offer from Launch Super Remote Diagnosis Reservation Platform
4. SmartLink can be used not only remote diagnosis but also local diagnosis by working with LAUNCH intelligent diagnostics
Requires Activation card
SRDs SmartLink:
Super Remote Diagnosis Solution:
SRDs is comprised of SmartLink C, SmartLink B and Cloud Platform.
The SmartLink C can be connected to the vehicle, and the SmartLink B can be connected with any diagnostic device.
The remote diagnosis will be carried out on the SmartLink platform.
Launch X431 SmartLink C Service Platform:
SmartLink Platform is used to pair the connection between SmartLink C and SmartLink B operated with the internet browser.
SmartLink C user can post the remote diagnosis request on this platform. SmartLink B user can see the requests from their clients and accept the request to do the remote diagnosis.
How Does the LAUNCH SMARTLINK REMOTE DIAGNOSIS WORK?
This picture may help you better understand the complete procedure of the Smartlink remote diagnosis.
LAUNCH X431 SMARTLINK C TECHNICAL PARAMETERS
- 3.97“ Single-Touch Screen, 320 x 480
- Working Voltage: DC 9V ~ 36V
- Communication method: Ethernet
- Type B USB 2.0
- Storage: 8GB
- Memory: 256M
- Power Consumption: < 6W
- Working temperature: -10°C ~ 50°C
- Storage temperature: -20°C ~ 60°C
- Storage humidity: 10% ~ 90%
- Dimension: 204 x 110 x 45 mm

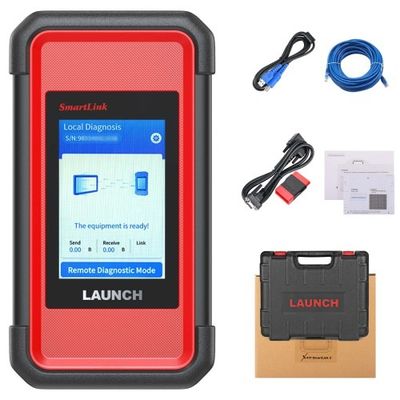

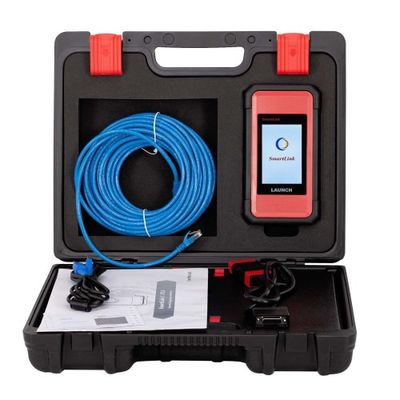

Launch X431 SmartLink C Packing List:
The following accessory items are for reference only. For detailed items, please consult with a local agency or check the packing list supplied with the device.
SmartLink C Dongle – For SmartLink Service Provider
OBD II Extension Cable – Connects the dongle to the VCI of the compatible diagnostic tool
CAT-6 Crossover Cable – Connects the dongle to the network modem
Power Adaptor – Supplies power to the dongle through an AC outlet.
