Xtruck M1 Motorcycle Diagnostic Tool with ABS Bleed Function ECU Reset and Active Test for 29+ Brands
| ブランド名 | Xtruck M1 |
|---|---|
| 最小注文数量 | 1 |
| 価格 | 219.00$ |
| パッケージの詳細 | スターダードパッケージ |
| 受渡し時間 | 1〜3営業日 |
| 支払条件 | T/T,ウェスタンユニオン,マネーグラム,マネーグラム,ペイパール |
| 供給の能力 | 在庫あり |
試供品およびクーポンのための私に連絡しなさい。
whatsapp:0086 18588475571
WeChat: 0086 18588475571
Skype: sales10@aixton.com
心配があれば、私達は24時間のオンライン・ヘルプを提供する。
x商品の詳細
| モデル | エクストラック M1 | 関数1 | 障害コードの読み取り/クリア |
|---|---|---|---|
| 関数2 | リアルデータ | 関数3 | アクチュエータテスト |
| 関数4 | フレームデータのフリーズ | 関数5 | ABS システムのテストとブリード |
| 関数6 | スロットル調整とリセット | 機能7 | サービスライトのリセット |
| 機能 8 | 鍵となるプログラミング | 保証 | 1年 |
| 状態 | 新しい | 更新方法 | Wi-Fiオンライン、SDカード |
| ハイライト | ABS Bleed Function Motorcycle Diagnostic Tool,ECU Reset OBD2 Scanner,Active Test Bike ECU Tester |
||
製品の説明

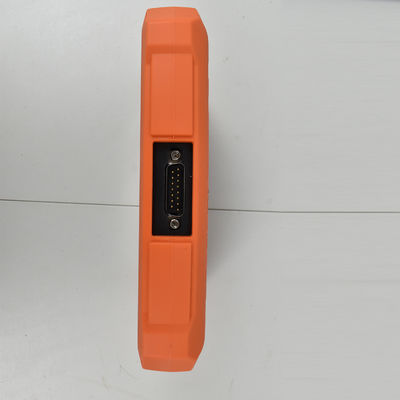

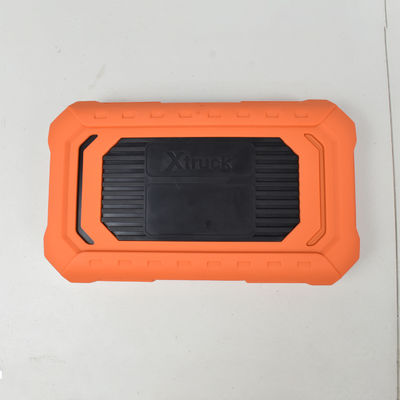

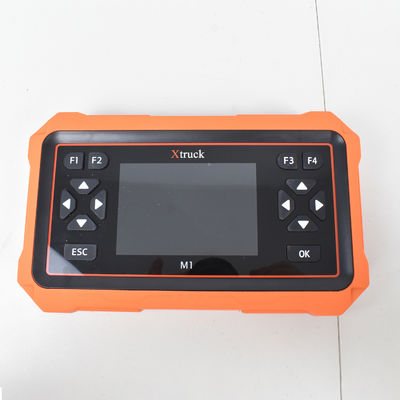

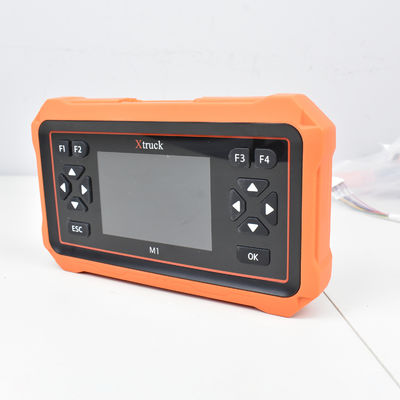

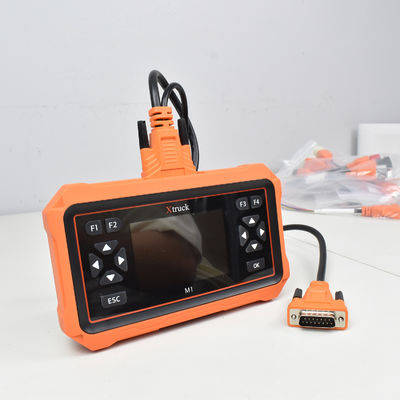

Xtruck M1 is a professional motorcycle diagnostic equipment with a brand new exterior design,handheld operation, convenient and flexible use, supporting WIFI online and SD card upgrades, large capacity storage, and reserved CAN bus interface.
Support Language
Traditional Chinese,English, Spanish, French, Thai, Turkish, Vietnamese, Indonesian, Portuguese, Japanese, Korean, German.
Support Brand:
ADIVA,AEON, APRILIA, ARCTIC CAT, BAJAJ, BENELLI, BMW, BRIXTON, BOMBARDIER, Peugeot, DUCATI, HARLEY-DAVIDSON, HARTFORD, HONDA, HYOSUNG, KAWASAKI, KTM, KYMCO, MODENAS, OBDII, PGO, PIAGGIO, ROYAL ENFIELD, SUZUKI, SYM, TRIUMPH, VESPA, YAMAHA, YIBEN.
Function
· Read system information
· Freeze data
· Clear fault codes
· ABS system testing
· Charging test
· DTC query
· CO idle speed adjustment
· Read fault codes
· Read data stream
· Actuator testing
· Start testing
· Fuel injector detection
· Troubleshooting guidance
· Signal output
· Maintenance assistant
. Fuel injector detection
Special Functions:
| 1. Idle CO Adjust | 42. TPS idle | 83. Reset gears |
| 2. TPS Reset | 43. TPS maximum | 84. Enable ABS |
| 3. TPS/ABV Reset | 44 . ISC value reset (not available on all models) | 85. Disable ABS |
| 4. Reset TPS | 45. TPS reset(not available on all models) | 86. Enable DQS |
| 5. Carbon Time Reset | 46. Clear car network serial number | 87. Disable DQS |
| 6. Reset ABV time | 47. Learning value reset | 88. DESMO service light reset |
| 7. COFPC Reset | 48. TPS full open learning value reset | 89. OIL service light reset |
| 8. Throttle Reset | 49. O2 feedback learning value reset | 90. DENSO service light reset |
| 9. ABV Reset | 50. ISC learning value reset | 91. Keys'reset |
| 10. APV Reset | 51. Front Wheel Bleed | 92. OIL SERVICE light reset |
| 11. Oil Priming | 52. Rear Wheel Bleed | 93. PIN code reset |
| 12. ISC Learning Reset | 53. Braking system bleeding | 94. Clean the maintenance light |
| 13. Run Acc.Time Reset | 54. ABS Reset | 95. ECM Update |
| 14. Front Cylinder | 55. ABS Bleed | 96. RESET TO NEW |
| 15. Rear Cylinder | 56. Parameter adjustment | 97. READ EEPROM 95320 |
| 16. Idle Adjust | 57. Idle actuator calibration | 98. WRITE EEPROM 95320 |
| 17. Idle PRM Adjust | 58. Engine synchronization | 99. READ KEY_DATA BLOCK |
| 18. Datastream | 59. Reset adaptive values | 100. READ EEPROM 95080 |
| 19. Diag.Tool ON/OFF | 60. Set motorcycle date | 101. WRITE EEPROM 95080 |
| 20. CO Adjustment | 61. Set the service date | 102. Read ST7 internal EEPROM |
| 21. Set TPS to zero | 62. Set the service mileage | 103. Write ST7 internal EEPROM |
| 22. Set autoadaptive value to zero | 63. Adaptation | 104. READ MC68HC05 EEPROM |
| 23. Auto learn throttle position | 64. Throttle adaptation | 105. WRITE MC68HC05 EEPROM |
| 24. Reset self-adaptive values | 65. Lambda adaptation | 106. Clear engine speed history |
| 25. ECM Reset | 66. Idling adaptation | 107. Clear Engine Extreme History |
| 26. Reset autoadaptive values | 67. Idle motor adjustment | 108. Clear key usage time record |
| 27. CO value adjustmen | 68. Reset self-adaptive A/F parameters | 109. Clear Last minute record |
| 28. Throttle closed learning value reset | 69. TPS reset closed position | 110. Adaptation values reset |
| 29. Idle valve opening learning value reset | 70. Adjustment of exhaust-flap | 111. Throttle balancing |
| 30. ECU reset | 71. Adjustment of balance pipe | 112. ISC apperture learned value reset |
| 31. Autoadaptive value Reset | 72. Enable speed limit | 113. Throttle learning value reset |
| 32. Idle position throttle self-learning | 73. Lift speed limit | 114. ISC rpm control |
| 33. Max position throttle self-learning | 74. Setting TPS to zero | 115. Oxygen sensor learning value setting |
| 34. Throttle position self-adapt | 75. CO calibration | 116. TPS Setup |
| 35. Reset self-adapting parameters | 76. Service lamp switch-off | 117. Oil maintenance lamp reset |
| 36. ECU Reset | 77. Self-adaptive parameters zero-setting | 118. ISC idle valve learning value reset |
| 37. Fuel trim,map 1 | 78. TPS reset | 119. TP throttle fully closed learning value reset |
| 38. Fuel trim,map 2 | 79. CO trimmer | 120. ISC speed control |
| 39. Manual TPS max | 81. APS reset closed position | 121. Long term fuel correction value reset |
| 40. Minimum CO map 1 | 81. Throttle position sensor reset | |
| 41. Minimum CO map 2 | 82. Air/fuel ratio learning value reset |
ECU Information: (Support Brand )
ADIVA,AEON,APRILIA,ARCTIC CAT,BAJAJ,BENELLI,BMW,BOMBARDIER,Peugeot,DUCATI,HARLEY-DAVIDSON,HARTFORD,HONDA,HYOSUNG,KAWASAKI,KTM,KYMCO,MODENAS,OBDII,PGO,PIAGGIO,ROYAL ENFIELD,SUZUKI,SYM,TRIUMPH,VESPA,YIBEN
Read Fault Code:(Support Brand )
ADIVA, AEON, APRILIA, ARCTIC CAT, BAJAJ, BENELLI, BMW, BRIXTON, BOMBARDIER, Peugeot, DUCATI, HARLEY-DAVIDSON, HARTFORD, HONDA, HYOSUNG, KAWASAKI, KTM, KYMCO, MODENAS, OBDII, PGO, PIAGGIO, ROYAL ENFIELD, SUZUKI, SYM, TRIUMPH, VESPA, YAMAHA, YIBEN
Erase Fault Code:(Support Brand )
ADIVA,APRILIA,ARCTIC CAT,BENELLI,BMW,BRIXTON,BOMBARDIER,Peugeot,DUCATI,HARLEY-DAVIDSON,HONDA,HYOSUNG,KAWASAKI,KTM,KYMCO,MODENAS,OBDII,PGO,PIAGGIO,ROYAL ENFIELD,SUZUKI,SYM,TRIUMPH,VESPA,YAMAHA,YIBEN
Freeze Frame Data: (Support Brand )
AEON,BRIXTON,BOMBARDIER,HARTFORD,KAWASAKI,OBDII,PGO,ROYAL ENFIELD,SUZUKI,YAMAHA
Live data: (Support Brand )
ADIVA, AEON, APRILIA, ARCTIC CAT, BAJAJ, BENELLI, BMW, BOMBARDIER, Peugeot, DUCATI, HARLEY-DAVIDSON,
HARTFORD, HONDA, HYOSUNG, KAWASAKI, KTM, KYMCO, MODENAS, OBDII, PGO, PIAGGIO, ROYAL ENFIELD,
SUZUKI, SYM, TRIUMPH, VESPA, YIBEN
Actuator Test:(Support Brand )
ADIVA,APRILIA,BENELLI,BMW,BOMBARDIER,DUCATI,HYOSUNG,KAWASAKI,KTM,OBDII,PIAGGIO,SUZUKI,TRIUMPH,
VESPA,YIBEN
Diagnostic: (Support Brand )
BRIXTON, YAMAHA
I/M Readiness: (Support Brand )
OBDII, SUZUKI
Xtruck M1 OBD version:
1 x Main Unit

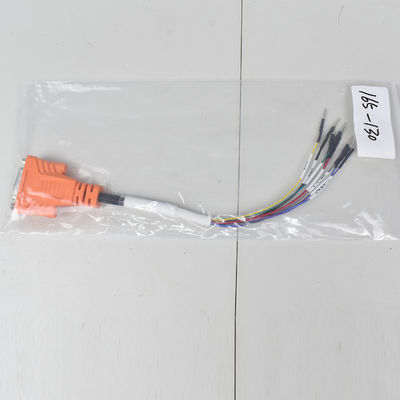

1 x Main Test Cable

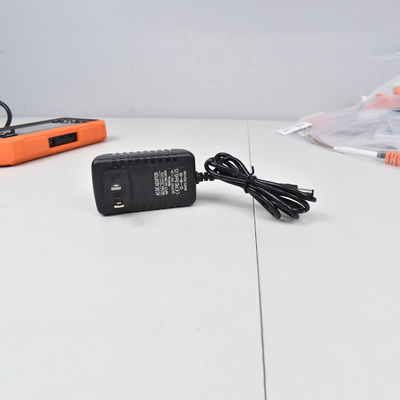

1 x Power Adapter
1 x OBD-16pin Cable

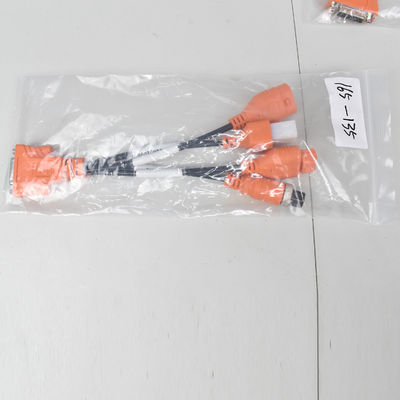

1x Universal Jump Cable
1 x User Manual
